Description

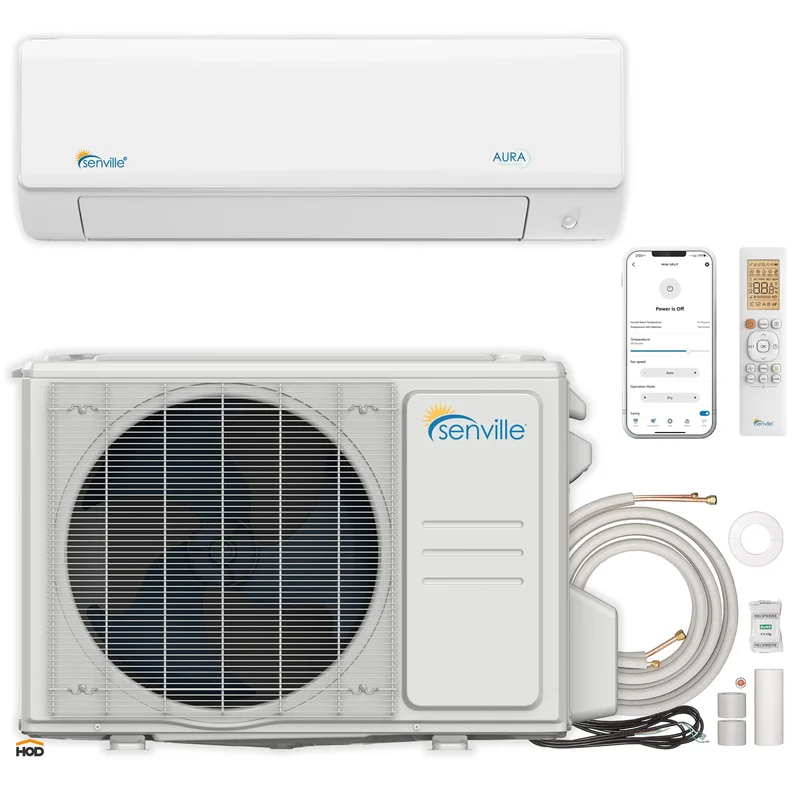

Senville SENA-09HF is a high-efficiency 9000 BTU ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.
Features
- 27.4 SEER2 ENERGY STAR – Save up to 58% on energy costs annually.
- Heating down to -30°C (-22°F) – Reliable performance in extreme cold.
- Alexa Enabled Smart Control – Control via voice or app anywhere.
- Ultra-Quiet Operation – Whisper-quiet for bedrooms & offices.
- Recommended for 100–450 sq. ft. – Great for small rooms or studios.
- Professional Installation – Required to maintain warranty coverage.
- Smart Home Integration with Alexa – Control your Senville system with Alexa or the app from anywhere. Create schedules, adjust settings, and enjoy convenience and energy savings remotely.
- ENERGY STAR Certified – Save up to 58% annually on energy costs with this ultra-efficient, ENERGY STAR certified system—ideal for eco-conscious homes and businesses.
- Cold Climate Heat Pump – Provides heating at -30°C (-22°F) with up to 75% efficiency, ensuring year-round comfort even in extreme climates.
- Diagnostics & Leak Detection – Built-in self-diagnostics and leak detection system help maintain peak efficiency and alert you of any issues for easier maintenance.
- 10-Year Warranty – Comes with a 10-year compressor warranty and 5-year parts warranty, backed by North American support.
- Installation Kit + Accessories Included – Includes a complimentary 16ft. Installation kit. System is pre-charged with R454B refrigerant for up to 25 ft. Professional installation is required to maintain warranty coverage and optimal performance.
What’s Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control
- Alexa USB Kit
- 16 ft. Installation Kit
- Indoor-Outdoor Wiring Harness
- Installation Manual
- User’s Manual
- 10-Year Manufacturer Warranty
| Condenser |
|
| Dimensions (WxDxH) |
28.74 x 11.02 x 19.49 in |
| Weight |
66.14 lbs |
| Air Flow (Max) CFM |
1100 |
| Noise Level dB |
56 |
| Air Handler |
|
| Dimensions (WxDxH) |
33.40 x 9.18 x 11.76 in |
| Weight |
22.05 lbs |
| Air Flow (Turbo/H/M/L) CFM |
425 / 340 / 260 / 200 |
| Noise Level (Turbo/H/M/L) dB |
45 / 37 / 31 / 23 |
| Technical Specification |
|
| Style |
Ductless Mini Split AC With Heat Pump |
| Power Supply (V-Ph-Hz) |
208/230V, 1Ph, 60Hz |
| Voltage Range |
187–253 |
| SEER2 |
27.4 |
| EER2 |
14.5 |
| Cooling Capacity (BTU) |
9000 |
| Cooling Range (BTU) |
3000~10500 |
| Cooling Input Range (W) |
320~950 |
| Cooling Current Range (A) |
1.5~4.8 |
| Heating Capacity (BTU) |
9800 |
| Heating Range (BTU) |
3100~11000 |
| Heating Input Range (W) |
330~1050 |
| Heating Current Range (A) |
1.6~5.1 |
| HSPF2-4 |
13.9 |
| HSPF2-5 |
9.8 |
| COP W/W |
3.55 |
| Minimum Circuit Ampacity (A) |
10 |
| Max. Fuse (A) |
15 |
| Moisture Removal (L/H) |
1.0 |
| Minimum Outdoor Heating Temperature |
-22°F / -30°C |
| Refrigerant Type / Charge |
R454B / 37.15 oz |
| Refrigerant Pre-charge |
25 ft |
| Connection Wiring |
14*4 AWG |
| Thermostat Type |
Remote Control |
| Alexa |
Enabled |
| Warranty |
10 Years Compressor / 5 Years Parts |
| Installation Manual |
| Energy Guide |
| AHRI Cert |
| Senville Catalogue |
