Description
Upgrade your home’s HVAC system with the Senville SENDC-24HF, a powerful 24,000 BTU central air conditioner and heat pump system designed for year-round performance. Featuring advanced inverter technology, this ducted unit delivers exceptional energy efficiency, whisper-quiet operation, and reliable heating and cooling—even in extreme temperatures down to -30°C (-22°F).
Highlights
- Inverter Technology – Optimizes energy use and maintains stable indoor temperatures.
- All-Season Comfort – Integrated heat pump provides efficient heating and cooling.
- Cold Climate Performance – Operates effectively in temperatures as low as -30°C (-22°F).
- Ultra-Quiet Operation – Ideal for bedrooms, offices, and living spaces.
- Eco-Friendly Refrigerant – Pre-charged with low-GWP R-454B refrigerant.
- Compact Coverage – Cools and heats up to 1,200 sq. ft., perfect for smaller homes or workspaces.
- Long-Term Warranty – 10-Year Compressor Warranty and 5-Year Parts Warranty included.
- Installation Kit Included – Comes with a 16 ft. pre-charged line set for simplified setup.
- Energy Efficient HVAC Performance – The SENDC-24HF utilizes variable-speed inverter compressor technology to reduce energy consumption and prevent temperature swings. This intelligent system delivers consistent climate control while helping lower monthly utility bills.
- Reliable Heating & Cooling in Any Season – Whether it’s summer heat or winter chill, the Senville SENDC-24HF central heat pump ensures year-round indoor comfort. It’s engineered to perform in extreme cold, making it a smart HVAC solution for challenging climates.
- Whisper Quiet Operation – Designed for comfort and peace of mind, this central AC system runs with minimal noise—ideal for bedrooms, nurseries, and shared living spaces.
- Eco-Conscious Refrigerant – The SENDC-24HF is pre-filled with R-454B refrigerant, a more environmentally friendly option with significantly lower global warming potential (GWP) than older refrigerants.
- Advanced Self-Cleaning & Diagnostics – Equipped with self-cleaning mode, leak detection, and maintenance alerts, this unit offers hassle-free upkeep and optimal performance throughout its lifespan.
What’s Included

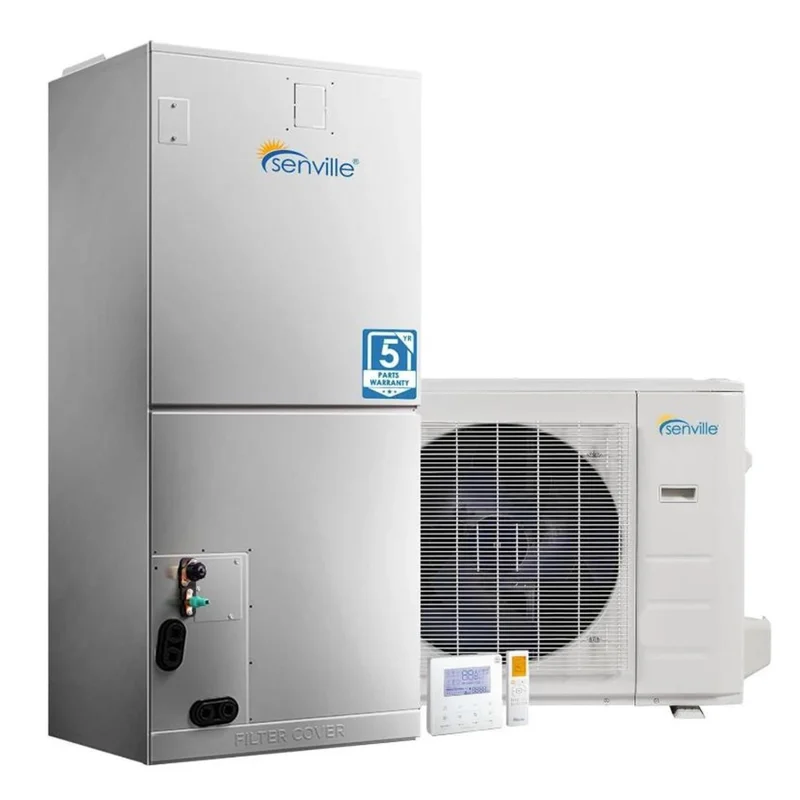

- Senville SENDC-24HF 24,000 BTU Central AC & Heat Pump Unit
- 16 ft. Pre-Charged Installation Kit
- 10-Year Compressor Warranty
- 5-Year Parts Warranty
Note: Professional installation is required for optimal performance and warranty validation.
| Condenser | |
| Dimensions (WxDxH) (in.) | 37.48×16.14×31.89 |
| Weight (lbs.) | 136.69 |
| Noise Level dB | 62 |
| Air flow(Max) CFM | 3000 |
| Air Handler | |
| Dimensions (WxDxH) (in.) | 21.02×17.52×45 |
| Unit Weight (lbs.) | 47.9 |
| Air Flow (H/M/L) CFM | 823/758/694 |
| Noise Level (H/M/L) dB | 39/36/33 |
| Technical Specifications | |
| Style | Central Air Conditioner with Heat Pump |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 18.3 |
| EER2 | 11.7 |
| Cooling (Range) | 64000~27000 |
| Input (W) | 2050 (740-2450) |
| Rated currentA | 9.1 |
| Heating (Range) | 10100~31000 |
| Input (W) | 2100 (660-2900) |
| Rated Current (A) | 9.3 |
| HSPF2-4 | 10 |
| HSPF2-5 | 8 |
| COP W/W | 3.35 |
| Minimum Circuit Ampacity (A) | 20.5 |
| Max. Fuse (A) | 35 |
| Refrigerant Type | R410A / 102.32 Oz |
| Refrigerant Pre-charge | 25 Ft. |
| Connection Wiring | 14AWG*2 Stranded, Shielded |
| Thermostat Type | Wall Remote |
| Warranty | 10 Years Compressor / 5 Years Parts |
| Senville Catalogue |
