Description
PLEASE BE ADVISED This is highly specialized HVAC equipment and should only be purchased by or after consulting with a licensed technician. The AC Outlet cannot be held liable for any equipment that has been purchased incorrectly. PLEASE NOTE: The BTU capacity of a Multi-Zone system is measured by the sum of ALL AIR HANDLERS, not by the rated capacity of the condenser.

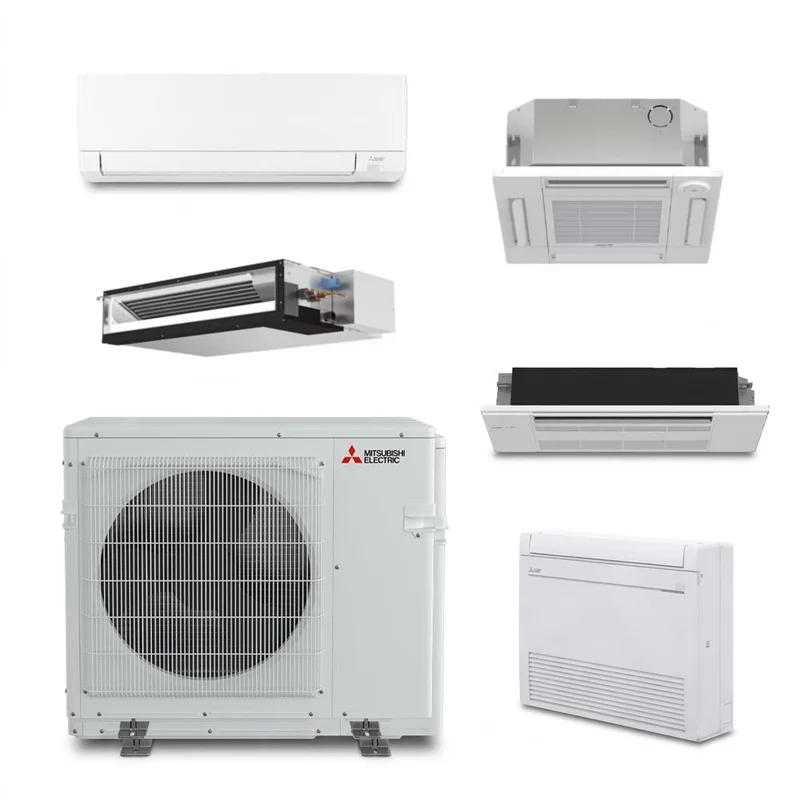

The Mitsubishi MXZ-3D24NL Mini Split Heat Pump System is a premier multi-zone solution designed for homeowners and contractors seeking high-efficiency comfort across multiple rooms. As a versatile outdoor condenser, the MXZ-3D24NL allows you to connect up to three indoor air handlers to a single outdoor unit, saving space and reducing installation complexity. Whether you need ductless wall-mounted units, horizontal ducted units, ceiling cassettes, or floor-standing models, this Mitsubishi system allows you to mix and match styles to perfectly fit the unique layout of your home or office.
Operation Performance & Outdoor Unit Specs:
- Supports connection of 2 to 3 indoor units.
- Minimum connected capacity: 12,000 BTU.
- Maximum connected capacity: 33,000 BTU.
- Energy-efficient inverter-driven compressor technology.
- Independent zone control allows the system to operate even if only one indoor unit is turned on.
- Compatible with all-ducted, all-non-ducted, or mixed-style indoor unit configurations.
SEER Ratings Based on Indoor Unit Style:
- All Ductless: Up to 19.0 SEER
- All Ducted: 15.5 SEER
- Mixed Configuration: 17.25 SEER
Please Read Regarding Controls & Thermostats:
- Wireless Remote Controllers Included: MSZ-GL, MSZ-FS, and MFZ-KJ indoor units.
- Wireless Remote Controllers NOT Included: SEZ-KD, SLZ-KF, and PEAD units.
- Required Controls: A wired or wireless Wall Controller (such as the MHK2) must be purchased separately for SEZ, SLZ, and PEAD indoor units.
