Description

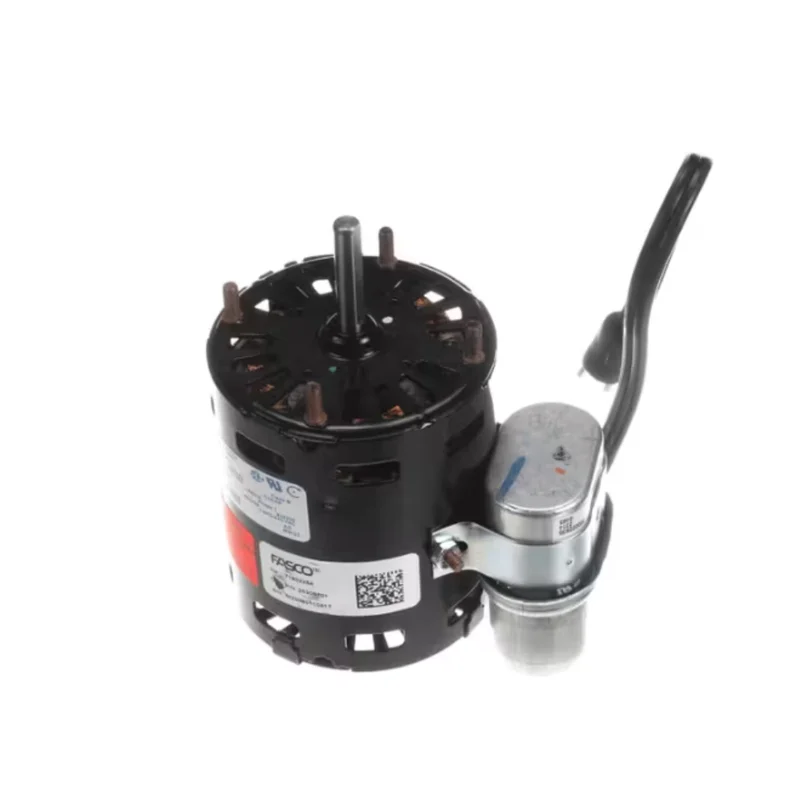

The Heatcraft 25308701S Condenser Fan Motor is a 460V, 50/60Hz single-phase motor designed for compatible Heatcraft commercial refrigeration condensing equipment. Featuring a 1/15 HP output and 1650 RPM operating speed, this motor helps move air across the condenser coil to support effective heat rejection and dependable refrigeration system performance.
Standard Features:
- 460V electrical rating
- 50/60Hz operating frequency
- Single-phase motor configuration
- 1/15 HP motor output
- 1650 RPM rated operating speed
- Designed for compatible Heatcraft condenser fan applications
- Supports efficient airflow across the condenser coil
Application and Service Features:
- Helps restore condenser airflow and heat-rejection performance
- Suitable for compatible commercial condensing units
- Voltage, phase, horsepower, speed, and rotation should be verified
- Motor shaft and mounting dimensions should match the existing assembly
- Condenser fan blade and guard should be inspected during replacement
- Power should be disconnected before installation or servicing
