Description

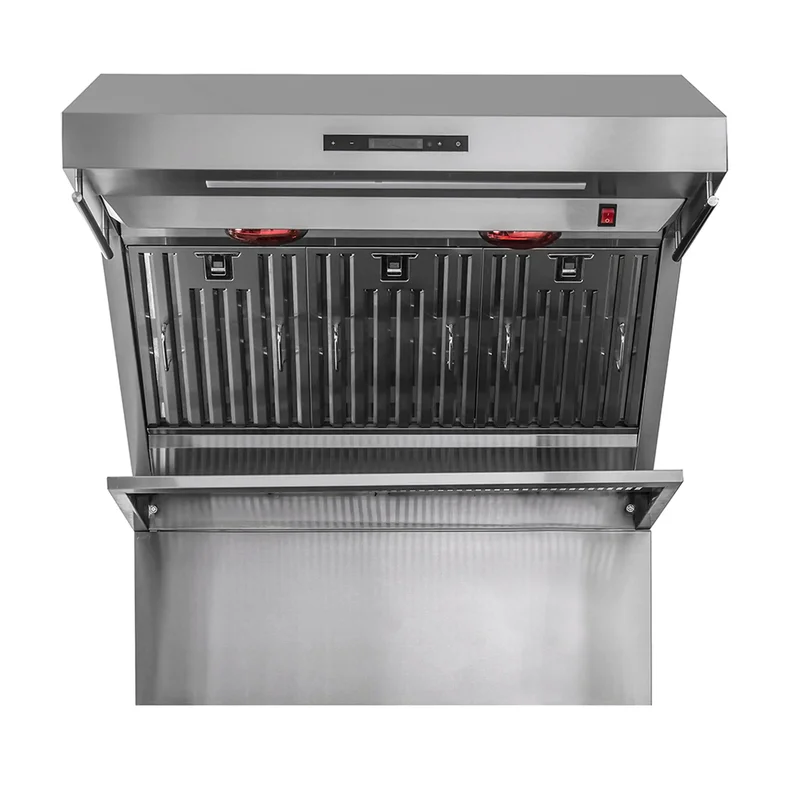

The Forno Savona 36″ Wall Mount Range Hood delivers powerful ventilation with 1200 CFM airflow to eliminate smoke, grease, and odors efficiently. Constructed from premium stainless steel, it ensures long-lasting durability and a professional appearance. Hybrid filters maximize filtration performance and are removable and dishwasher-safe for easy maintenance. Multiple fan speed settings allow precise airflow control based on your cooking needs. The integrated upper warming shelf, heated by three warming lights, keeps dishes ready to serve. A sleek stainless steel backsplash adds both elegance and wall protection, while dual utensil hangers offer convenient storage or a stylish way to display cookware.
Highlights
- Baffle Filters are the ideal kitchen ventilation system
- Warming Shelf
- Delay Shut Off Timer
- Equipped with a powerful energy-efficient 1200 CFM,
- Utensil hangers and Heal light over warmer shelf
- Backsplash
Features
- The Savona commercial style canopy range hood is equipped with a powerful energy-efficient 1200 CFM, designed to capture smoke, gases, steam and grease to keep your cooking area free of unwanted odors.
- Utensil hangers and Heal light over warmer shelf ensure optimal convenience. Hang your utensils from the right and left underside of the hood, saving space in your kitchen.
- The baffle filter’s combination of panels and curved plates a larger surface area that causes oils in the hot air to condensate on the steel. Dishwasher safe design allows for easy cleaning.
- Automatic power-off function that activates after 15 minutes, offers a convenient solution for ventilating cooking fumes once the meal is prepared.
- The Savona baffle filters are the ideal kitchen ventilation system for this type of hood tand designed to capture grease, smoke, odors and grease from the air.
- Includes an extremely durable and resistant to heat stainless steel backsplash that provides an easy to wipe-off surface to keep your backsplash grease and mess free.
- Maximum power ventilation at a low noise level of 68dB allows you to enjoy an effective ventilation system without obtrusive noise disruption. Low setting delivers sound level of 48dB.
| Weight & Dimensions | |
| Product Overall Weight (lbs) | 107.80 |
| Product Dimensions W x D x H (inches) | 35.43 x 25 x 39.49 |
| Cutout dimensions W x D x H (inch) | 36 x 25 x 39 |
| Technical Information | |
| Color/Finish | Stainless Steel |
| Control Location | Front |
| Primary Material | Stainless Steel |
| Display Type | LCD |
| Decibel Speed 3 (dB) | 60 |
| Decibel Speed 1 (dB) | 48 |
| Bulb Type | LED Light Strip |
| Heating Lamp Maximum Wattage | 220 |
| Motor(s) Power (Watts) | 120 |
| Backsplash Dimensions W x H (inch) | 35.43x 12.6 |
| Minimum Height from Cooktop | 30 |
| Minimum Decibel (dB) | 48 |
| Sones Speed 4 | 16 |
| Sones Speed 2 | 6 |
| Minimum Sones | 2 |
| RPM Speed 4 | 1510 |
| RPM Speed 2 | 1050 |
| Air Flow Speed 4 | 2039 |
| Air Flow Speed 2 | 1274 |
| CFM speed 4 | 1000 |
| CFM speed 2 | 750 |
| Minimum CFM | 550 |
| Range Hood Shape | Square |
| Number of Lights | 1 |
| Remote Control | No |
| Power off Function | Yes |
| Reversible Blower | No |
| Chimney Short Kit | No |
| Rangehood Chimney | No |
| Backsplash Included | Yes |
| Number of Heating Lamp | 2 |
| Speed Control Type | Touch |
| Duct Type | 6-in Round |
| Damper | Yes |
| Filter Material | Stainless Steel |
| Air Discharge Direction | Vertically Upward |
| Charcoal Filters | No |
| Exhaust Vent Location | Top |
| Blower Material | Metal |
| Fingerprint-Resistant | No |
| Dishwasher Safe Filters | Yes |
| Clock | Yes |
| Power Cord Location | Top |
| Decibel Speed 4 (dB) | 68 |
| Decibel Speed 2 (dB) | 53 |
| Bulb Wattage | 10 |
| Heating Lamp Type | Tungsten-Halogen E26 |
| Heating Lamp Wattage | 175 |
| Duct length (inch) | 59 |
| Warming Shelves Dimensions W x D x H (inch) | 35.43 x 12.01 x 3.46 |
| Maximum Decibel (dB) | 68 |
| Sones Speed 3 | 11 |
| Sones Speed 1 | 2 |
| Maximum Sones | 16 |
| RPM Speed 3 | 1350 |
| RPM Speed 1 | 880 |
| Air Flow Speed 3 | 1614 |
| Air Flow Speed 1 | 935 |
| CFM speed 3 | 950 |
| CFM speed 1 | 550 |
| Maximum CFM | 1000 |
| Number of light settings | 1 |
| Power off Information | 15 Minutes |
| Hardware Finish | Stainless Steel |
| Warming selve included | Yes |
| Heating Lamp Included | Yes |
| Speed Control | 4 |
| Damper Type | 6-in Round |
| Removable Grease Filter | Yes |
| Filter Type | Baffle |
| Vent Style | External |
| Vent Type | Ducted |
| Number of exhaust Vent | 2 |
| Number of Blower(s) | 2 |
| Certification | |
| Safety Listing | cETLus |
| ISTA 6A | Yes |
| UPLR Compliant | Yes |
| Yes | |
| Warranty | |
| Commercial Warranty | No |
| Warranty on Parts | 2 Years |
| Warranty Type | Limited |
| Warranty on Labor | 2 Years |
| Warranty Length (Years) | 2 Years |
| Specs Sheet |
| Instruction Manual |
