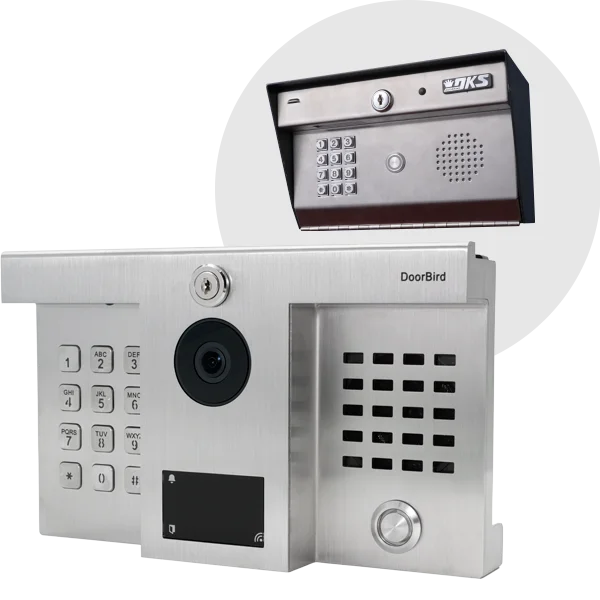

DoorBird IP Video Door Station D1812, Hybrid Upgrade For Installations Of Doorking 1812 Classic And Plus in Stainless Steel V2A (423866720)
D1812 IP VIDEO DOOR STATION
Hybrid upgrade for adding DoorBird IP Intercom technology to installations
of DoorKing® 1812 Classic (Flush & Surface Mount) and D1812 Plus (Flush &
Surface Mount) while keeping the existing DoorKing® 1812 analog telephone
system running.
Features
-
Open API – Local interface for integration with third-party systems and SIP
-
Automatic door buzzer – For use in medical offices and office environments
-
Wiegand Interface – Output of Keypad and RFID reader
-
Video and audio call – On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
-
Free visitor history – Store still images for free, optional video recording available
-
Keypad Module – Configurable via App – More than 500 individual PIN codes • Individual events (e.g. switch a relay, HTTP(s) requests)
-
Smart Transmission Mode (STM) – Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
-
Individual action schedules, e.g. – RFID card “abc” has only access on Wednesday from 9 am until 11 am.4D motion sensor switches on external lamp between 9 pm and 6 am
-
Bluetooth Low Energy (BLE) – For access control, compatible external sensors and smart locks
-
Smart Home & NVR compatible – Control4, Lilin, Crestron, Synology, Dahua, URC, QNAP, RTI, ELAN, Synology, Bang & Olufsen and others
-
Geofencing – Automatic door and gate opening when returning home
-
RFID reader – Configurable remotely via App (e.g. time frame)
| Compatibility | DoorKing® 1812 Classic (Flush & Surface Mount), DoorKing® 1812 Plus (Flush & Surface Mount) |
| Front panel | 2 mm (0.078 in), brushed stainless steel V2A, V4A |
| Call button | Stainless steel button with illuminated LED ring |
| Power Supply | 12 – 15 DC (min. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |
| Keypad Module |
12 keys, illuminated, configurable via App, e.g.
|
| Weight |
2340 g |
| Connectors |
|
| Weather-proof | Yes, IP65 |
| Approvals | CE, IC, FCC, RoHS, IP65, IK08 |
| Dimensions |
150.5 x 248 x 73.5 mm (H x W x D) 5.93 x 9.76 x 2.89 in (H x W x D) |
| Operating conditions |
-25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non condensing) |
| Scope of delivery |
1x Main Electrical Unit 1x Front panel 1x Power supply unit (mains adaptor) with four country-specific adaptors (110 – 240 V AC to 15 V DC) 1x 2.4 GHz WiFi antenna (SMA) with extension cable for external mounting 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts |
| Data Sheet |
| Installation Manual |
| Materials Guide |
